The Solar Charging Optimization Module is an external maximum power point tracker (MPPT) and when installed properly, actively monitors and optimizes the energy source to maximize power input, resulting in up to 40% faster charge times, especially from solar panels.

FOR USE WITH GOAL ZERO YETI LITHIUM 1000 & 1400 PORTABLE POWER STATIONS. COMES PRE-INSTALLED ON YETI 3000 LITHIUM PORTABLE POWER STATIONS.

Increase your home energy storage capacity with the Yeti Link Expansion Module and Yeti Tank Expansion Battery (sold separately). Yeti Link lets you connect Yeti Tank lead-acid batteries to your Yeti X or Yeti Lithium Power Station to increase your storage capacity at 1.2 kWh intervals. The Yeti Link comes with its own 120W Power Supply for charging from the wall. Usage Note: The Yeti Link Expansion Module and Yeti Lithium MPPT Solar Charging Optimization Module use the same expansion bay therefore they are unable to be used at the same time.

Includes

• Yeti Link Expansion Module
• 120W Power Supply
• Link Lock
• EC8 Straight Connector
• EC8 90° Connector

Charge Times

• Max Input from Yeti Tank to
• Goal Zero Yeti 1000/1000X: 454-605W
• Goal Zero Yeti 1400/1500X: 454-750W
• Goal Zero Yeti 3000/3000X: 750W
• Goal Zero Yeti 6000X: 750W

Ports

• Do not exceed 22V input
• 8mm Charging Port (input): 14 - 22V Do not exceed 150W (10A) per port
• External Battery Connector (output): 65A charge controller
• External Battery Connector (Input/Output): 10.7-15V. Do not exceed 15V
• YETI X 120W POWER SUPPLY
• Input: AC Wall Plug 100-240V - 50/60Hz 3.0A
• Output: 8.0mm 16V- 7.5A, 120W

General

• Goal Zero 98210
• Weight: 1.5 lbs (680 g)
• Dimensions: 10.25 x 3.3 x 1.5 in (26 x 8.4 x 3.8 cm)
• Warranty 12 months
• YETI X 120W POWER SUPPLY
• Gauge: 16AWG
• Cable Length: 9' 4"
• Dimensions: 2.5 x 5.9 x 1.4 in (6.5 x 15 x 3.5 cm)

Goal Zero Yeti Home Energy Storage

Customizable, versatile energy storage system backs up four essential circuits in your home and scales to meet your specific power needs.

Our industry-leading battery chaining technology allows you to connect cost-effective lead-acid batteries to our high-quality Yeti X and Yeti Lithium Power Stations to easily scale your energy storage capacity.

Integrate directly with your home's circuits for a more seamless backup power experience using the Yeti Home Integration Kit. Power everything from lights in high-use rooms and fridges to medical devices, internet modems, and more.

Yeti Link Vehicle Integration

Quickly and easily recharge a Yeti Lithium (1000X or higher) from your vehicle while on the move. Charge rates vary from 25A - 80A Max Current (300W -750W) depending on Yeti Lithium size and capacity.

When placed in “Vehicle Mode,” the Yeti Link allows your Yeti Lithium to safely pull power from your vehicle’s alternator while the vehicle is running and stop pulling power when the vehicle is off.

NOTE: Yeti Link must be in Vehicle Mode to utilize this feature or it will drain your vehicle’s battery. All Links come standard set in “Tank Mode.

• Plastic body pea whistle
• Includes:

o Whistle

o Thermometer

o Magnifier – 2.5x strength

o Compass

• Weather and water resistant
• Keychain clip for versatile attachment options

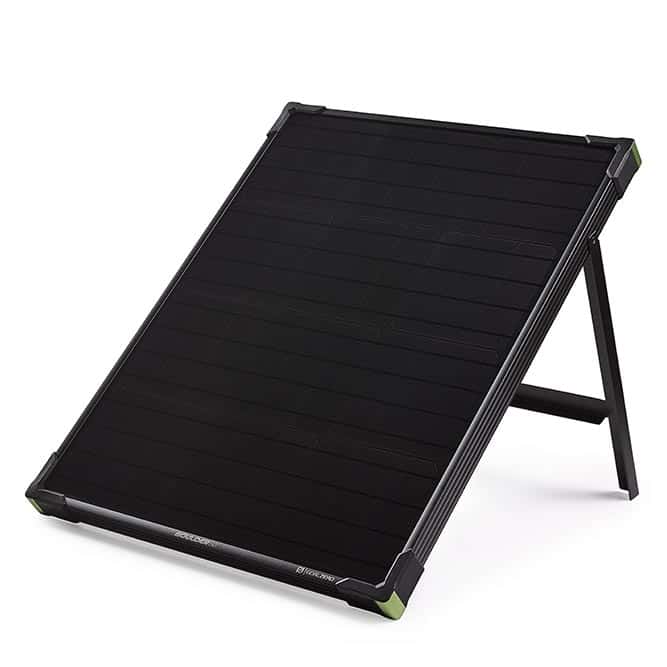

Rugged, durable, and rigid. The Boulder 50 Solar Panel is built with strong tempered glass and an aluminum frame with added corner protection for temporary or permanent installation. Equipped with an integrated kickstand to help get optimal angle to the sun. Use with a Goal Zero portable power pack or portable power station to charge your gear day or night.

• Waterproof
• You can chain up to four Boulder 50’s
• Mountable
• You can chain the boulder 50 with older boulders that have a 8mm connector
• Delivers up to 50 Watts of power
• Dimensions: 21.75 x 26.75 x 1.75 in (55.2 x 70 x 4.4 cm)
• Weight: 12.4 lbs.

• Goal Zero Yeti 150: 6-12 Hours
• Goal Zero Yeti 400: 16-32 Hours
• Goal Zero Yeti 1400: 57 - 114 Hours

Used to safely combine two or more power sources or solar panels with Anderson Power Pole (APP) connectors into an array with a single APP connector. To be used with larger Goal Zero Yeti Portable Power Stations with an APP input.

SPECIFICATIONS:
- Input: APP
- Output: APP

Two Boulder 100 Solar Panels (200 watts total) in an easy-to-carry briefcase form. Includes integrated kickstands, as well as a handle and protective canvas bag for easy carrying.

Dimensions (folded): 40.0 x 26.75 x 3.5 in.

Dimensions (unfolded): 40.0 x 53.5 x 1.75 in.

Charges the following:

• Goal Zero Sherpa 50: 3 hours
• Goal Zero Sherpa 100: 3 hours
• Goal Zero Yeti 150: 3-6 hours
• Goal Zero Yeti 400: 4-8 hours
• Goal Zero Yeti 1400: 14-28 hours

Weighs 42 lbs.
